BM1000 Chocolate Refining Ball Mill
orCall +961 3118600
Description

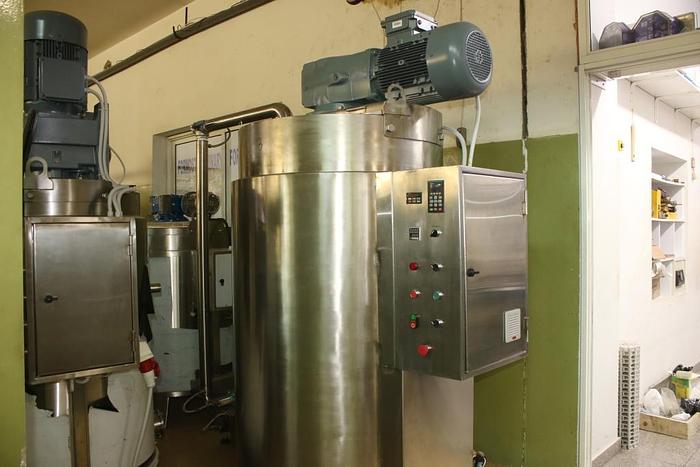

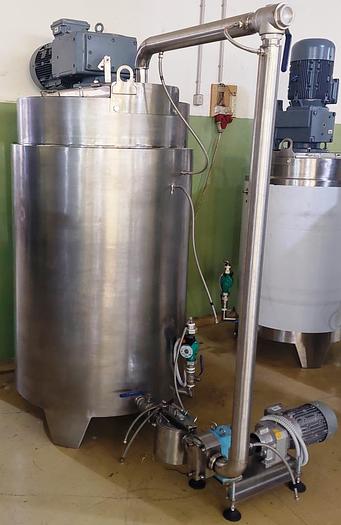

Chocolate Refining Ball Mill (BM1000)
Features:
- Double jacket for hot and cold water circulation.
- Water is heated when required using electric heaters.
- Solenoid valve to allow the entrance of cold water.
- Temperature controller to control the heating and cooling processes.
- Made from stainless steel (AISI-304).

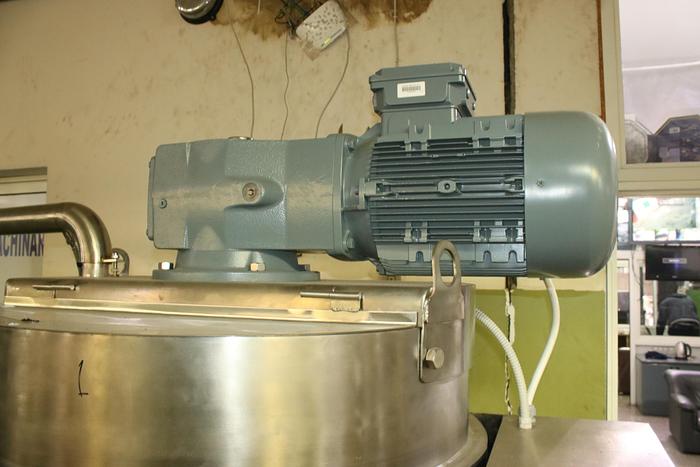

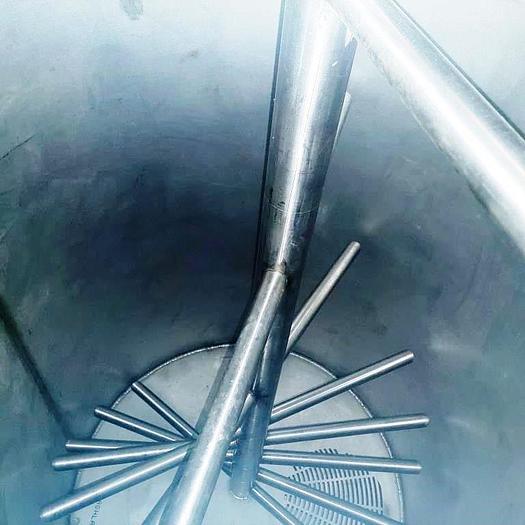

- SS stirrer inside, driven by a Nord motor.
- a water pump installed that helps water circulate inside the double jacket.

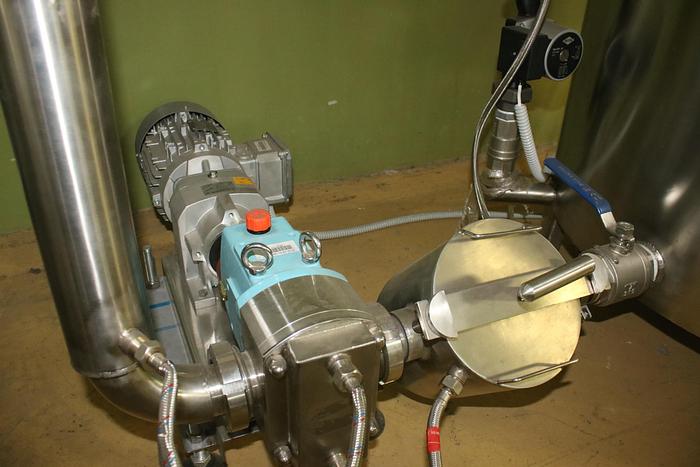

- Chocolate Pump to circulate chocolate, ensuring lower fineness in a shorter time.
Specifications
| Manufacturer | Formost Machinary |
| Model | BM1000 |
| Condition | New |
| Capacity | 1000 Kg. |
| Material | Stainless-Steel (AISI 304) |
| Stirrer | From inside is fully made from stainless-Steel (AISI 304) of speed: 63 rpm |
| Motor Brand | Nord Germany |
| Motor Power | 25 HP, 18.5 kw |
| Dimensions LxWxH | 220 x 120 x 240 cm |
| Thickness | Stainless Steel thickness: inner 10mm, outer 4mm, bottom 15mm |
| Smoothness | 20 to 22 microns |
| Chrome Balls | 1000 kg |
