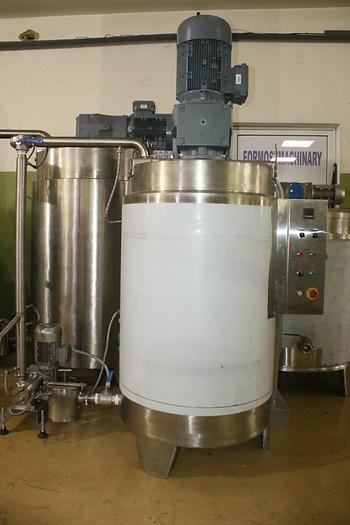

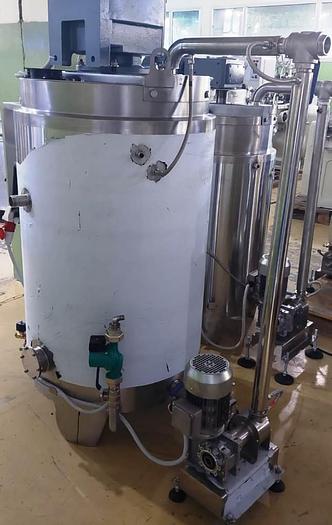

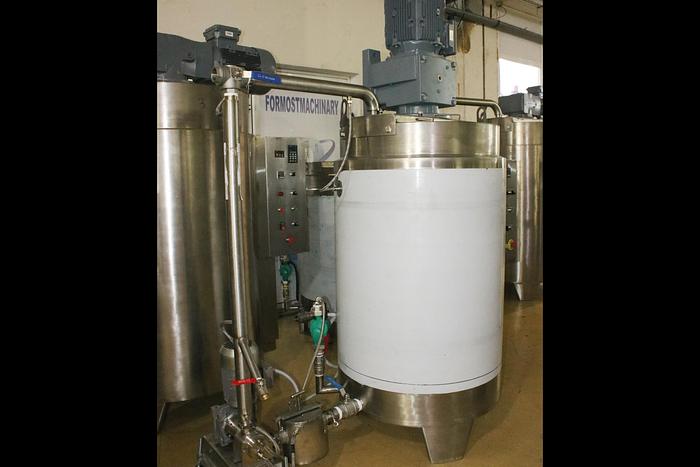

BM500 Chocolate Refining Ball Mill
orCall +961 3118600
Description
Features:
- Double jacket for hot and cold water circulation.
- Water is heated when required using electric heaters.
- Solenoid valve to allow the entrance of cold water.
- Temperature controller to control the heating and cooling processes.
- Made from stainless steel (AISI-304).

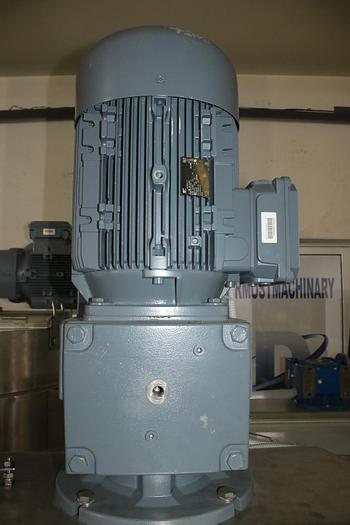

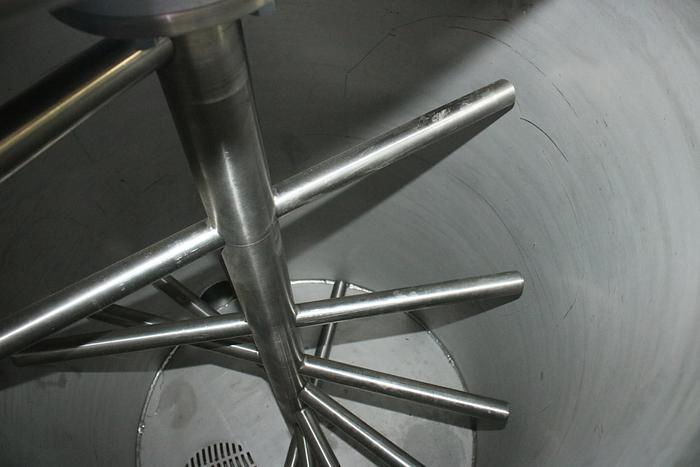

- SS stirrer inside, driven by a Nord motor.
- a water pump installed that helps water circulate inside the double jacket.

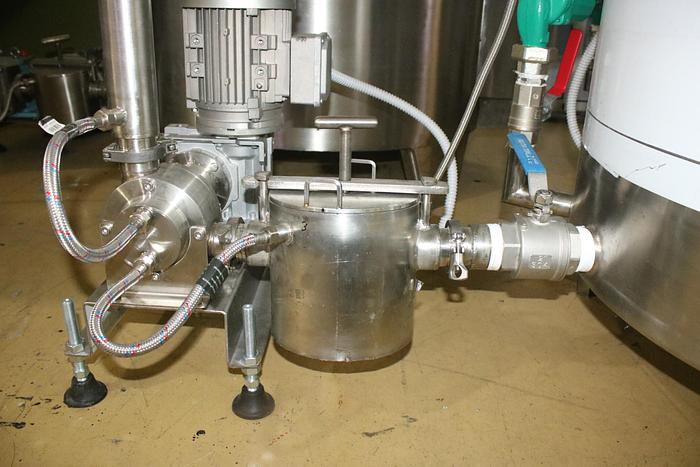

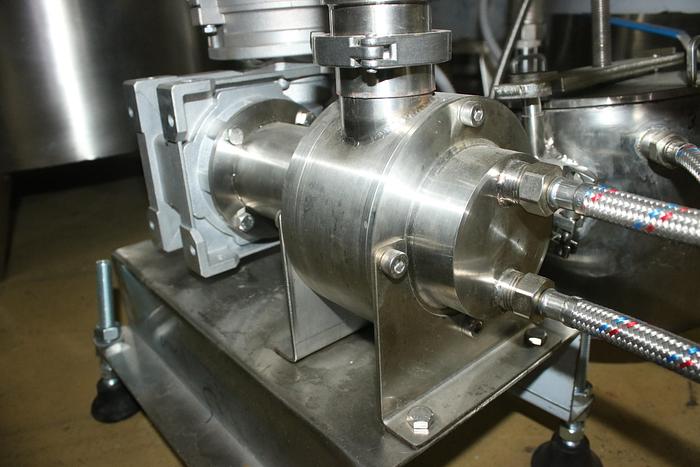

- Chocolate Pump to circulate chocolate, ensuring lower fineness in a shorter time.
Specifications
| Manufacturer | Formost Machinary |
| Model | BM500 |
| Condition | New |
| Capacity | 500 Kg |
| Material | Stainless-Steel (AISI 304). |
| Motor Brand | Nord Germany |
| Motor Power | 15 HP, 11Kw |
| Dimensions LxWxH | 180 x 120 x 250 cm |
| Chocolate output smoothness | 20 to 22 microns |
| Thickness | Stainless Steel thickness: inner 8mm, outer 3mm, bottom 10mm |
| Chrome Balls | With 500 Kg 8 mm hard chrome balls. |
| Duration for refining process | 4 to 6 hrs |
