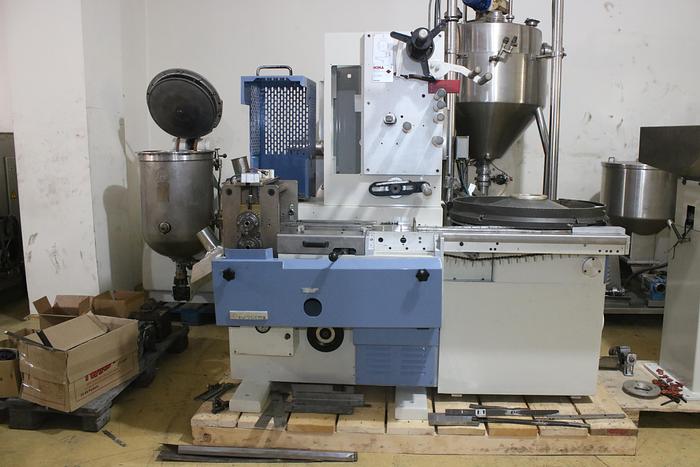

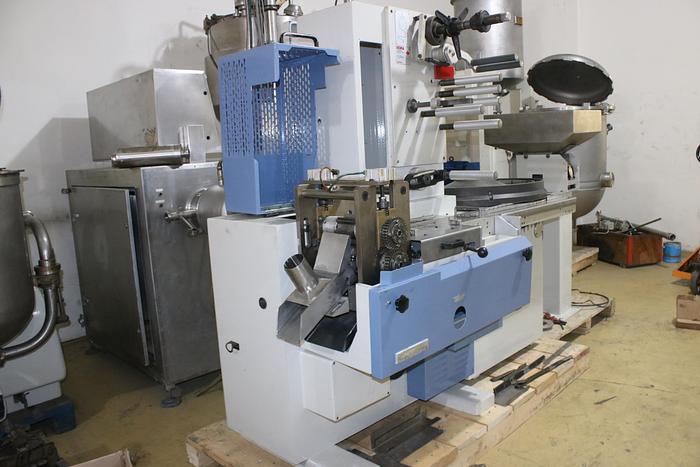

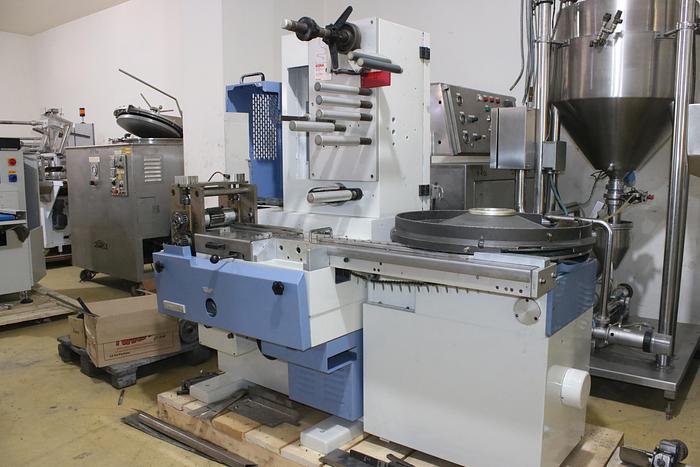

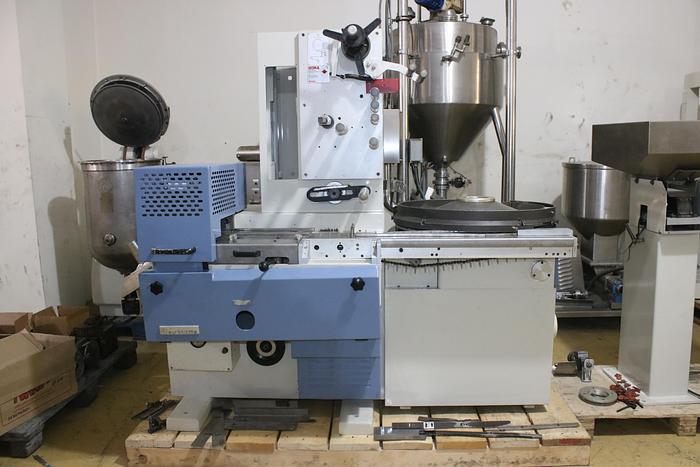

Eurosicma 75DS
Description
The EURO 75 combines all the strengths of the renowned EURO 70 and EURO 80 Models, of which more than 2000 have been installed worldwide, together with the latest state of the art wrapping
technology.
Main Features:
-Compact efficient equipment.
- Operator friendly.
- Oil-bath lubricated sealed units and toother belt transmission systems
minimise maintenance and reduce noise levels.
- The machine is easy to clean with all components readily accessible.
Standard version of the EURO 75 DS includes

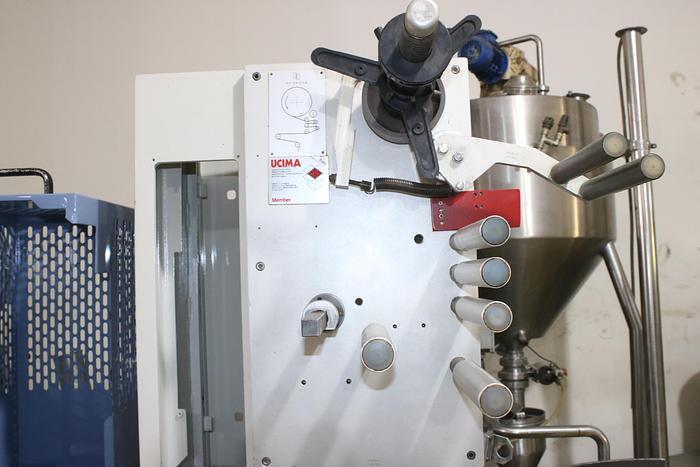

• Wrapping material reel-holder complete with film tension adjuster
• Three pairs of longitudinal sealing rollers to ensure perfect film feed.
The final two pairs of rollers only are heated.

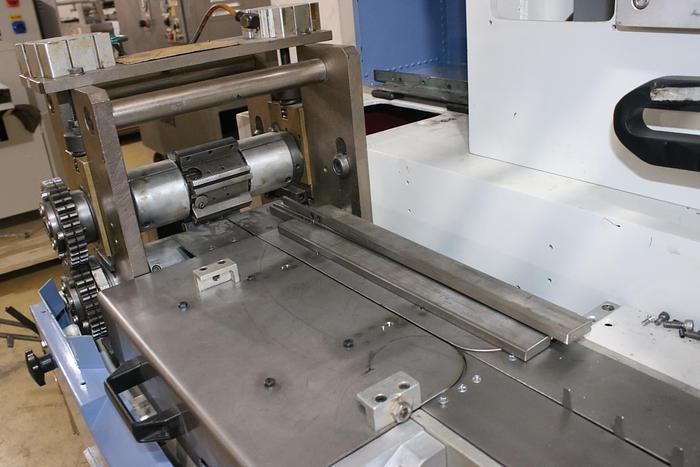

• Multiple stainless steel transverse sealing jaws for maximum speed.
In phase machine stop.

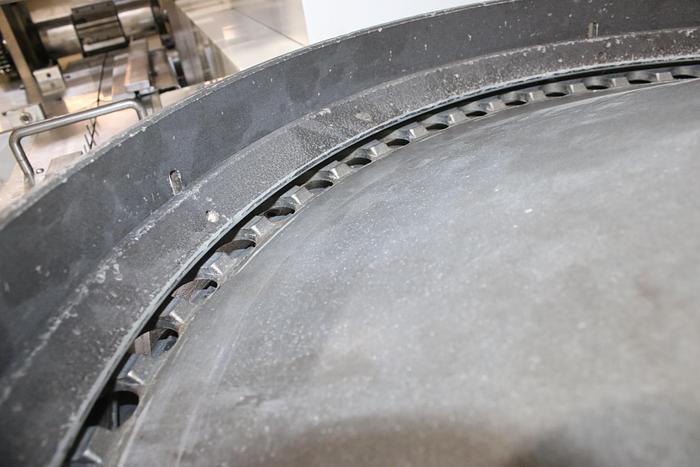

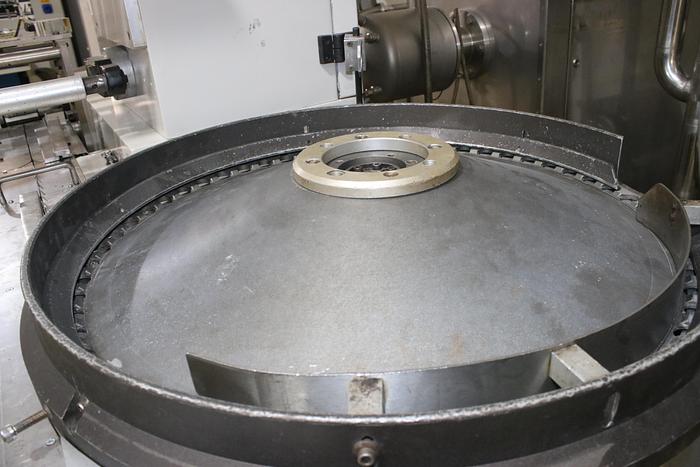

• Automatic feed unit for confectionery and similar products comprising
two independently driven feed discs running at different speeds to
ensure maximum feed plate efficiency. The frame is cast and all
mechanical components lubricated in an oil bath. The feed unit is
manufactured to the most advanced mechanical standards to ensure
high speed and maximum output.
Specifications
| Manufacturer | Eurosicma |
| Model | 75 DS |
| Condition | Refurbished |
| Stock Number | 0000 |
| Motive power | 2KW |
| Heating | 3 KW |
| Shipping Dimensions: | 3 x 1 x 2 mts |
| Product Size: | Thickness 5 to 10 mm Width 10 to 30 mm Length 15 to 40 mm |
| Wrapping material: | Internal diameter 75 mm External reel diameter 400 mm Maximum reel width 200 mm All commercially available hot or cold seal materials can be used including polypropylene, cellophane, polythene coated paper, aluminium laminates etc |
| Output: | Up to 1000 packs per minute |

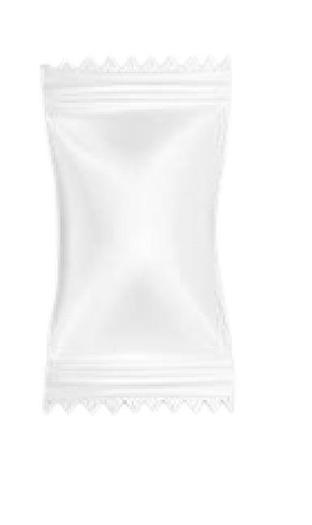

| Wrapping Style | Mini- wrap style |
